• Manual transfer case & hubs
• 4-wheel drive
• 72 amp/hr (650 CCA) battery
• 157-amp HD alternator
• Trailer tow pkg -inc: 7-wire harness w/relays, 7/4 pin combination connector
• 12.5K trailer hitch receiver -inc: 2" hitch
• Trailer brake controller *Compatible w/select electric over hydraulic brakes*
• 6-3/4' pickup box -inc: (4) tie-down hooks, partitionable & stackable storage
• (2) front tow hooks
• Mono-beam front axle w/coil spring suspension
• HD gas shock absorbers
• Front stabilizer bar
• Pwr steering w/steering damper
• Pwr 4-wheel disc brakes w/vacuum boost
• 2-ton mechanical jack

• (5) LT245/75R17E all-season BSW tires
• 17" 5-spoke cast aluminum wheels -inc: bright center ornaments
• Full-size spare tire w/lock & carrier
• Chrome front bumper w/grained top cover
• Chrome rear bumper
• Front fender vents
• Box-rail & tailgate top-edge moldings
• Grille w/medium platinum insert & chrome surround
• Dual beam jewel-effect headlamps
• Pickup box/cargo lights
• Underhood service light
• Manually telescoping pwr heated trailer tow mirrors -inc: turn signals, integrated clearance lights, heated convex spotter mirror
• Solar tinted glass
• Rear privacy glass
• Flip-out rear quarter windows
• Interval windshield wipers
• Dual rear access doors
• Front/rear license plate brackets
• Black door handles
• Removable locking tailgate w/black handle & TailGate Assist

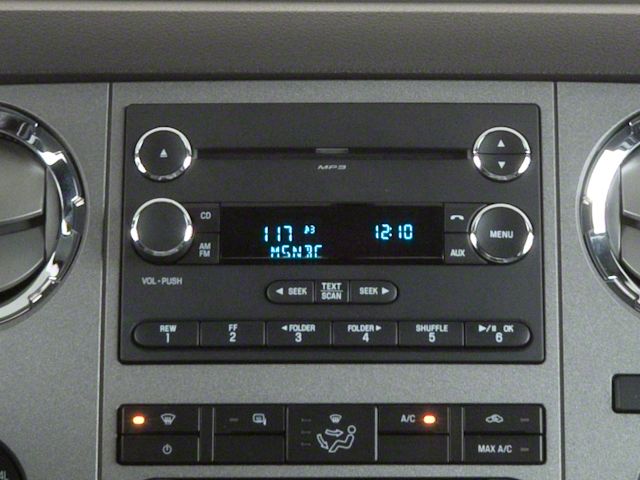

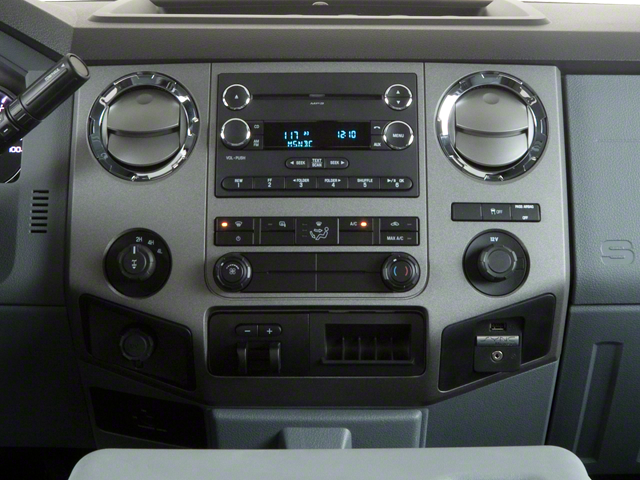

• AM/FM stereo w/CD/MP3 player -inc: clock, (4) speakers, aux audio input jack

• Air conditioning w/chrome ringed black vents

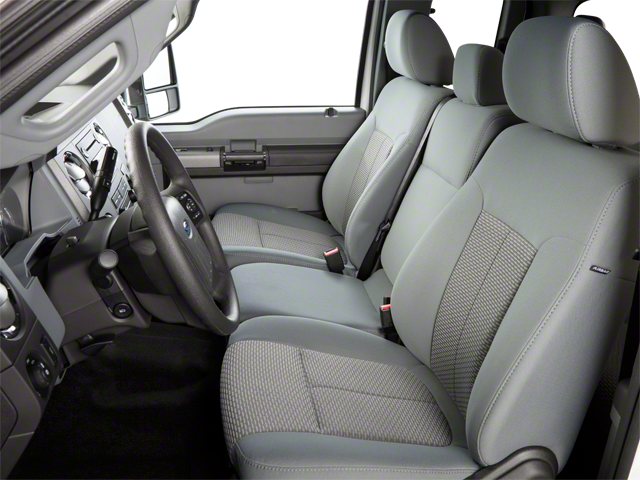

• Cloth 40/20/40 split bench front seat -inc: center armrest, cupholder, storage, center underseat storage w/aux pwr outlet
• Driver manual lumbar support

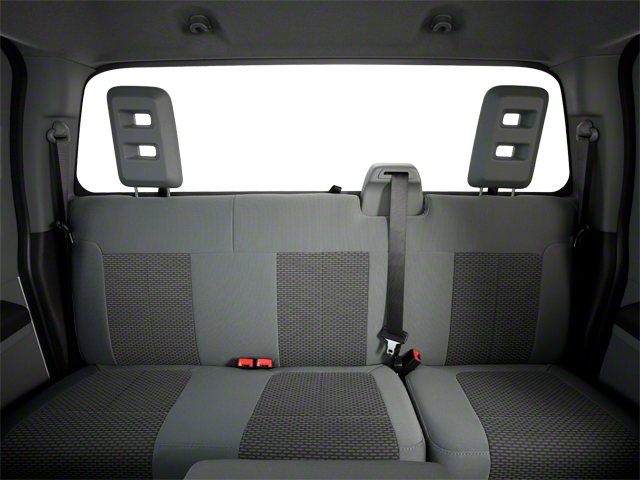

• Cloth 60/40 fold-up rear split bench seat
• Color-keyed carpet full-floor covering
• Front/rear color-keyed carpeted floor mats
• Color-keyed scuff plates
• Tilt/telescoping steering column

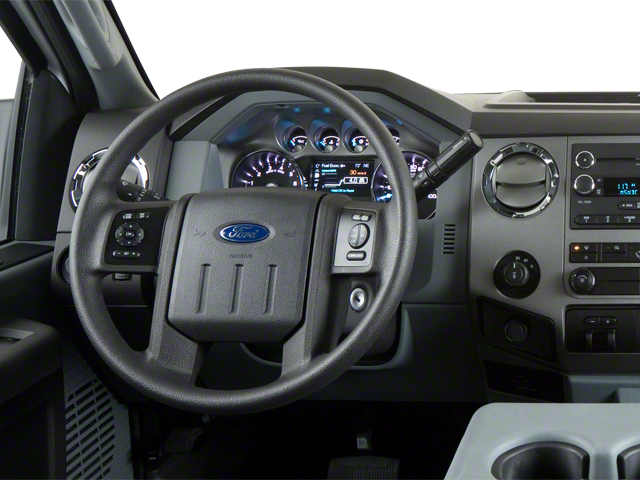

• Multifunction switch message center -inc: ice blue lighting, 3-button message control on steering wheel
• Oil minder system

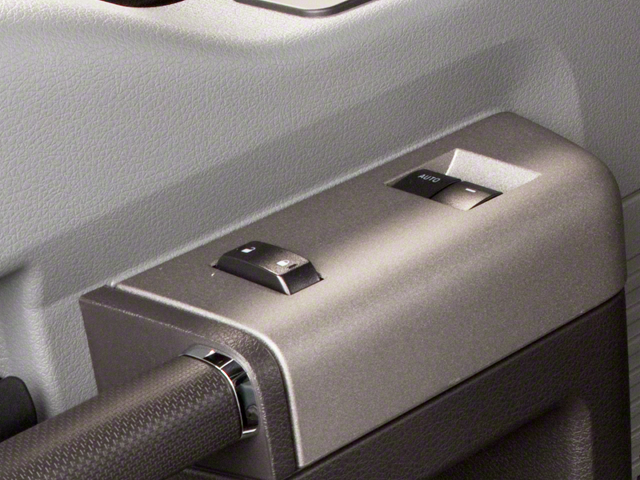

• Pwr windows w/driver one-touch-down & backlit switches
• Accessory delay
• Pwr door locks w/backlit switches
• Remote keyless entry & perimeter anti-theft alarm
• SecuriLock anti-theft ignition
• Cruise control
• 3-blink lane change signal
• (4) air registers w/positive shut-off
• Map pockets w/integrated "closed containers only" cupholders
• (2) aux pwr outlets in instrument panel
• Dash-top tray

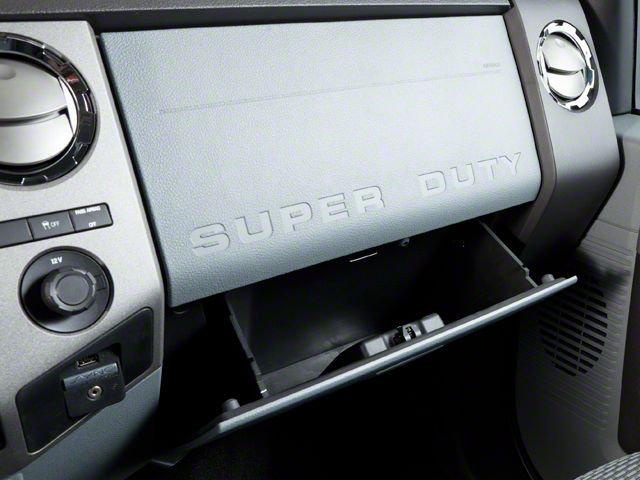

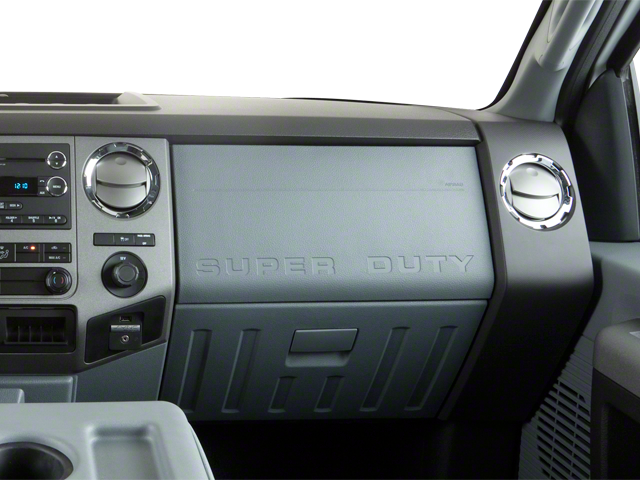

• Glove box
• Instrument panel mounted storage bin & trash bag hook
• Color-keyed door trim panel -inc: color-keyed soft armrest, pwr switch bezel, molded upper applique, upper & lower map pockets, grab handle & reflector
• Overhead console -inc: storage bins for garage door opener & sunglasses
• Color-keyed cloth headliner
• Front passenger-side roof ride handle
• Driver & front passenger grab handles
• Dual color-keyed vinyl sunvisors-inc: covered mirrors
• Front door operated dome lamp w/time delay off & IP switch
• Front map lamps
• Dual color-keyed coat hooks

• 4-wheel anti-lock braking system (ABS)
• AdvanceTrac w/roll stability control (RSC)
• Hill start assist control
• Trailer sway control
• Driver & front passenger airbags w/passenger-side deactivation switch
• Driver & front passenger side air bag/curtain
• SOS post crash alert system
• Color-keyed safety belts w/front seat outboard height adjustable D-rings
• Front center seat integrated restraints (SIR)
• BeltMinder seatbelt-not-buckled chime & flashing warning light
• Child seat tethers on all rear passenger seats
• Tire pressure monitoring system
• MyKey system -inc: top speed limiter, audio volume limiter, early low fuel warning, programmable sound chimes, BeltMinder w/audio mute

6.7L 32-VALVE POWER STROKE V8 DIESEL ENGINE

• diesel emission fluid system
• engine exhaust braking in tow/haul mode
• 750 CCA 78-AH dual batteries
• intelligent oil life minder

• Order Code 603A
• GVWR: 10,000 lb Payload Package
• 17" 5 Spoke Cast Aluminum Wheels
• Cloth 40/20/40 Split Bench Seat
• XLT Interior Package
• FX4 Off-Road Package
• Heavy Service Front Suspension Package
• 4x4 Electronic-Shift-On-The-Fly
• Extra Heavy-Duty 200-Amp Alternator
• 5th Wheel/Gooseneck Hitch Prep Package
• Upfitter Switches (4)
• Radio: AM/FM Stereo/Single-CD/MP3 Player
• Satellite Radio
• All-Weather Floor Mats
• Power Adjustable Pedals
• Transfer Case & Fuel Tank Skid Plates
• Hill Descent Control
• Colored Front & Rear Rancho Branded Shocks
• 6-Way Power Driver Seat
• Auto-Lock/Auto-Unlock
• Auto-Lamp/Rain-Lamp
• SecuriCode Keyless Entry Keypad (Driver-Side)
• 4 Speakers

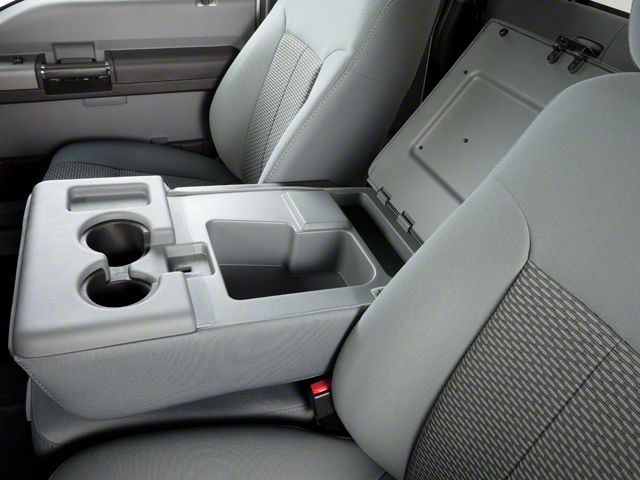

• Front Center Armrest w/Storage
• Front beverage holders
• Variably intermittent wipers
• Turn signal indicator mirrors
• Traction control
• Tilt steering wheel
• Telescoping steering wheel
• Split folding rear seat
• Speed control
• Security system
• Remote keyless entry
• Rear step bumper
• Radio data system
• Power windows
• Power steering
• Power door mirrors
• Passenger vanity mirror
• Passenger door bin
• Passenger cancellable airbag
• Panic alarm
• Overhead console
• Overhead airbag
• Outside temperature display
• Low tire pressure warning
• Illuminated entry
• Heated door mirrors
• Front reading lights
• Front anti-roll bar
• Dual front side impact airbags
• Dual front impact airbags
• Driver vanity mirror
• Driver door bin
• CD player
• Bumpers: chrome
• Brake assist
• Alloy wheels
• AM/FM radio
• ABS brakes
• Tachometer
• Electronic Stability Control
• Air Conditioning
• 4-Wheel Disc Brakes

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (Primary): 650
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 157
• Maximum Alternator Watts: 2100
• Cooling System
• Total Cooling System Capacity (qts): 38.9
• Total Cooling System Capacity (qts): 21.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5200
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 6100
• Curb Weight - Front (lbs): 4384
• Curb Weight - Front (lbs): 3830
• Curb Weight - Rear (lbs): 2853
• Curb Weight - Rear (lbs): 2791
• Gross Vehicle Weight Rating Cap (lbs): 10000
• Gross Combined Wt Rating (lbs): 23500
• Gross Combined Wt Rating (lbs): 19000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13800
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 12200
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 2070
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1830
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 16100
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 12200
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4025
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3050
• Suspension
• Suspension Type - Front: Coil
• Suspension Type - Rear: 2-Stage Leaf
• Spring Capacity - Front (lbs): 5200
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6100
• Axle Type - Front: Dana Super 60 Monobeam
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.10
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.7 x 0.5
• Rear Brake Rotor Diam x Thickness (in): 13.4 x 0.3
• Tires
• Front Tire Order Code: TBK
• Rear Tire Order Code: TBK
• Spare Tire Order Code: TBK
• Front Tire Size: LT245/75R17E
• Rear Tire Size: LT245/75R17E
• Spare Tire Size: LT245/75R17E
• Front Tire Capacity (lbs): 3195
• Rear Tire Capacity (lbs): 3195
• Spare Tire Capacity (lbs): 3195
• Revolutions/Mile @ 45 mph - Front: 660
• Revolutions/Mile @ 45 mph - Rear: 660
• Revolutions/Mile @ 45 mph - Spare: 660
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: - TBD -
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 20.4
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 47.5
• Turning Diameter - Wall to Wall (ft): 49.4
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Capacity, Approx (gal): 35
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 141.8
• Length, Overall w/o rear bumper (in): 232.4
• Width, Max w/o mirrors (in): 79.9
• Height, Overall (in): 79.5
• Overhang, Front (in): 38.1
• Overhang, Rear w/o bumper (in): 52.4
• Front Bumper to Back of Cab (in): 139.8
• Cab to Axle (in): 40.0
• Cab to End of Frame (in): 80.4
• Ground to Top of Load Floor (in): 35.6
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): 37.6
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 8.2
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 81.8
• Cargo Box Width @ Top, Rear (in): 63.5
• Cargo Box Width @ Floor (in): 69.3
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Box (Area) Height (in): 20.0
• Tailgate Width (in): 60.6
• Cargo Volume (ft³): 64.1
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.7
• Front Leg Room (in): 41.1
• Front Shoulder Room (in): 68.0
• Front Hip Room (in): 67.6
• Second Head Room (in): 38.1
• Second Leg Room (in): 31.6
• Second Shoulder Room (in): 68.1
• Second Hip Room (in): 67.3
• Summary
• Vehicle Name: Ford Super Duty F-250 SRW
• Body Style: Supercab 6-3/4'
• Body Code: 142" WB
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
